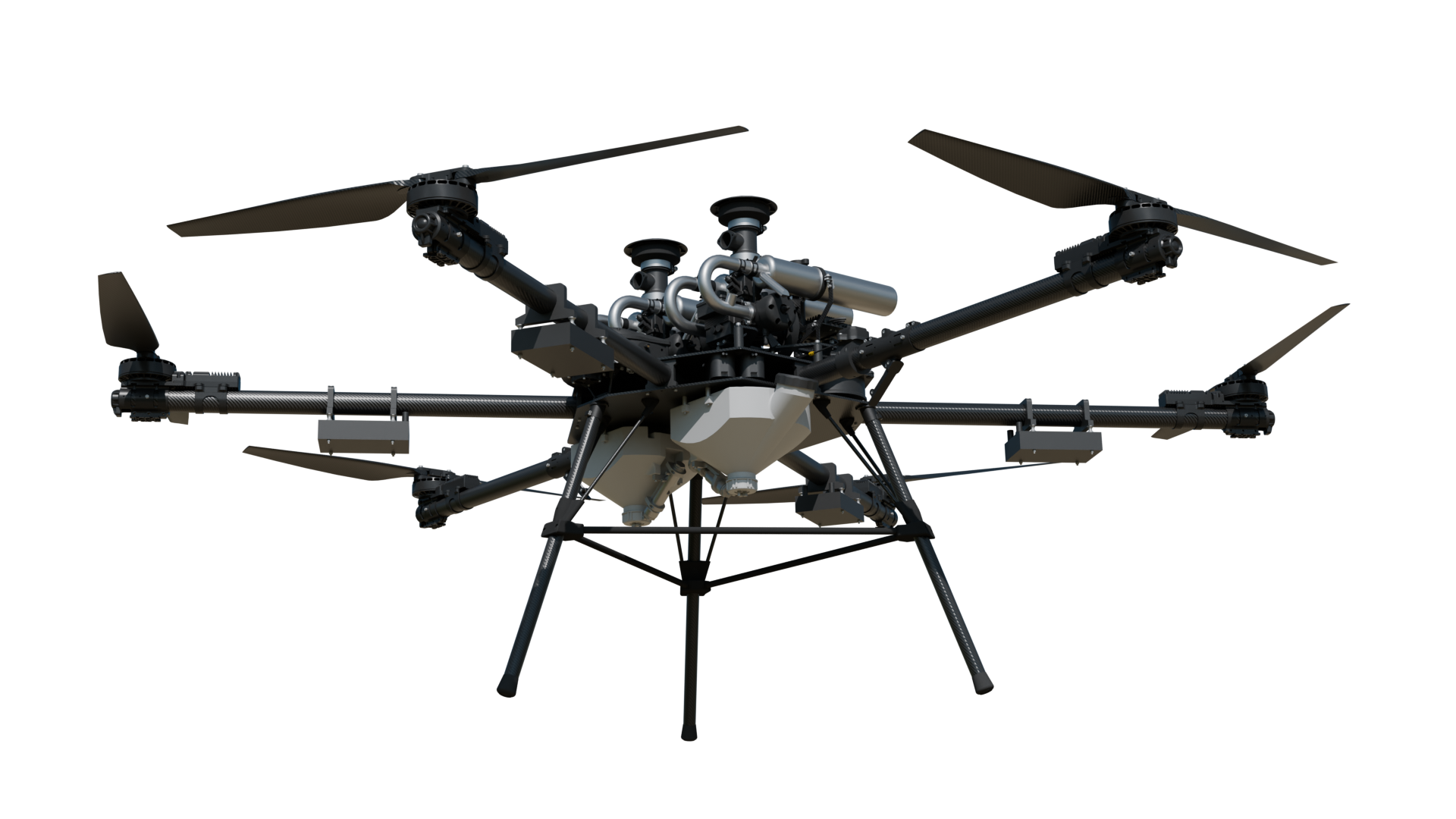

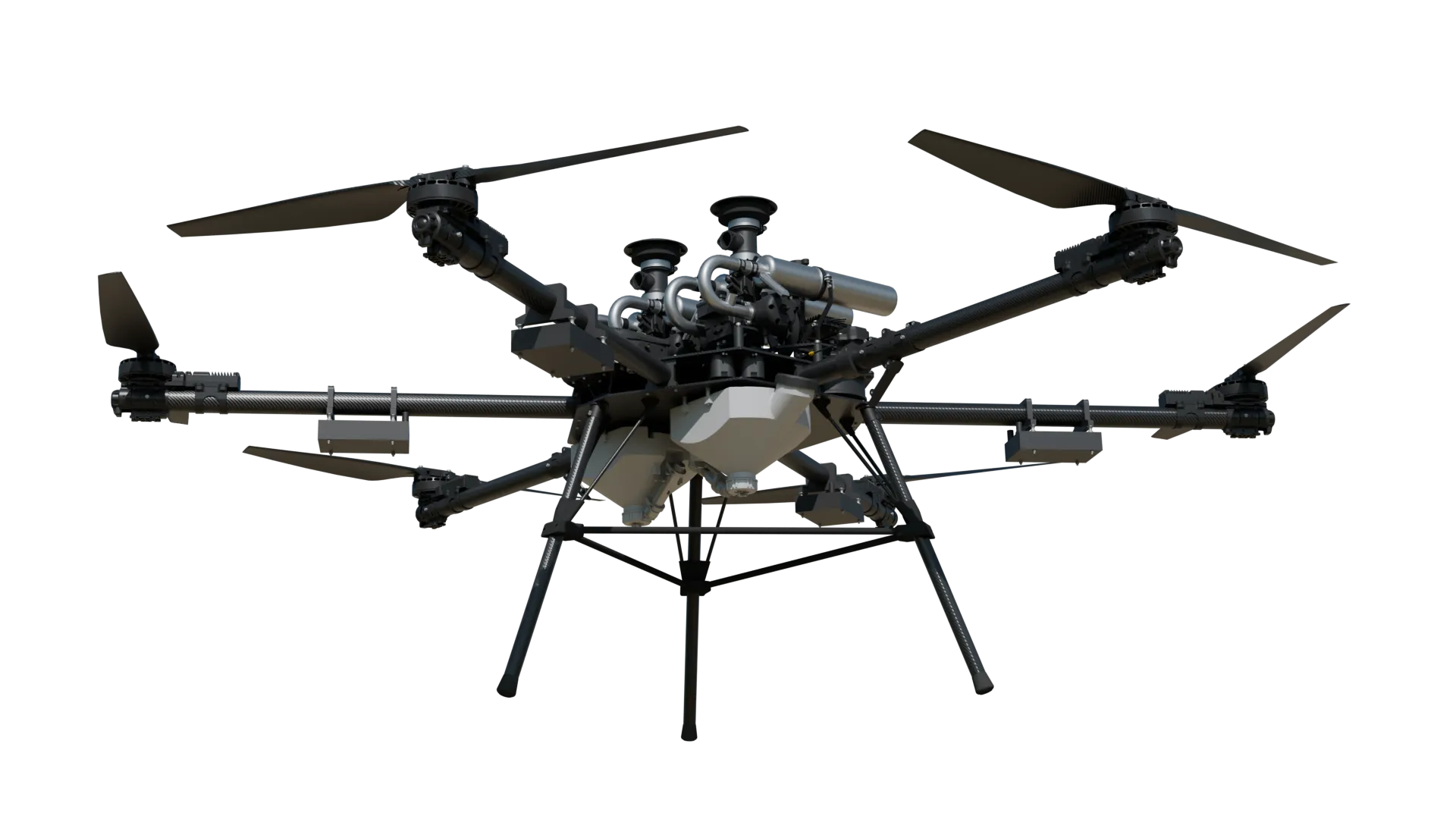

HD-606
A Power House on Wings
With HD-606 the sky is the limit! Fly for hours and hours with maximum capacity and slung payload capabilities for the most demanding operations. Delivering 50kg payload for 30 minutes or 25kg for 3+ hours with van transportable convenience, this drone is a true UAV gamechanger.
Core Benefits with the HD-606
Dual Generator Redundancy
Two generator system ensures maximum reliability and continuous power for critical operations
Maximum Payload Capacity
Industry leading 50kg lifting capability for heavy equipment and cargo transport
Weather Resistance
Robust carbon fiber construction withstands harsh environmental conditions
Van Transportable
Compact design enables transportation in standard commercial vehicles
Payload vs Flight Time Calculator
Discover the HD-606's exceptional performance range with our interactive calculator. Slide to see calculations from 25kg payload (3 hours flight time) to 50kg payload (30 minutes flight time) and optimize your operational configuration.
2h
Flight time
24
Kg
HD-606 Specifications
HD-606 specsheet
Dimensions
Width
2400 mm
Diagonal
2400 mm
Height of landing gear
300 mm
Weights
Max. takeoff weight
104 kg
Gross payload
50 kg
Fuel tank
32 L
Max. fuel
25 kg
System
Motors
6
Voltage
48 V
Generators
2
Generator continuous power
14000 W
Generator time between overhauls
200 h
Battery only flight time at max. payload
2 m
Battery capacity
10 Ah
Payload
Payload Power (W)
1500
Connector
Amass XT90
Payload fixing attachment
Custom
Flight characteristics
Max. speed (km/h)
20 m/s
72 km/h
38 knts
Operating temperature (°C)
-20 to +40
Max. wind speed
15 m/s
A great variety of heavy duty applications
The HD-606 offers a great variety of applications for both transport, payloads and surveillance. It’s practical when it comes to defense cargo transport, including tactical supply delivery and equipment transport for military operations.
It handles heavy slung payloads and external cargo for construction materials, specialized equipment and equipment for remote site logistics and infrastructure support operations.
The HD-606 also offers extended surveillance capabilities for long duration monitoring missions with heavy sensor packages.
Want to know more?
Contact our team for detailed pricing information and technical specifications tailored to your specific operational requirements.
